Brand:Sanwu
Product Code:BE
weight:90g
Product Condition:New
$55.00 inc. tax
Add to Cart
Description

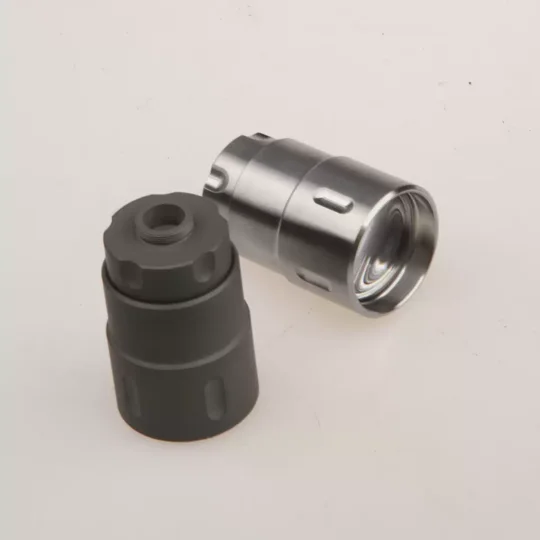

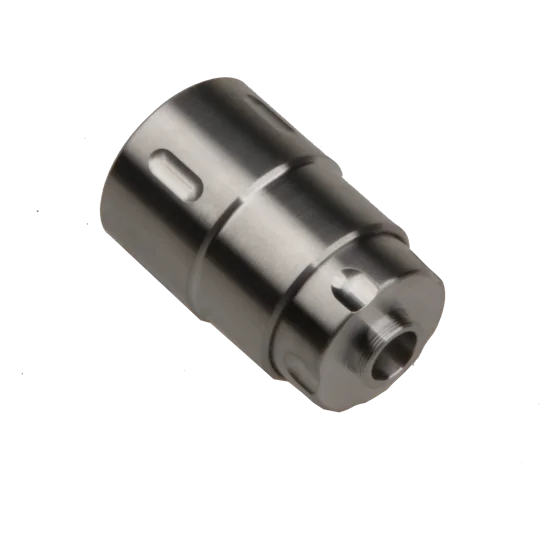

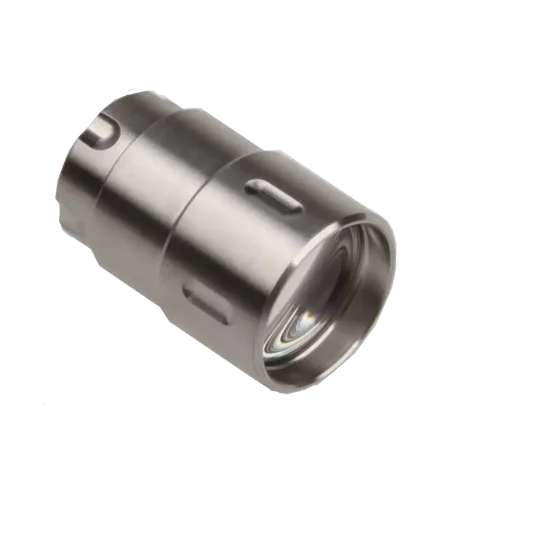

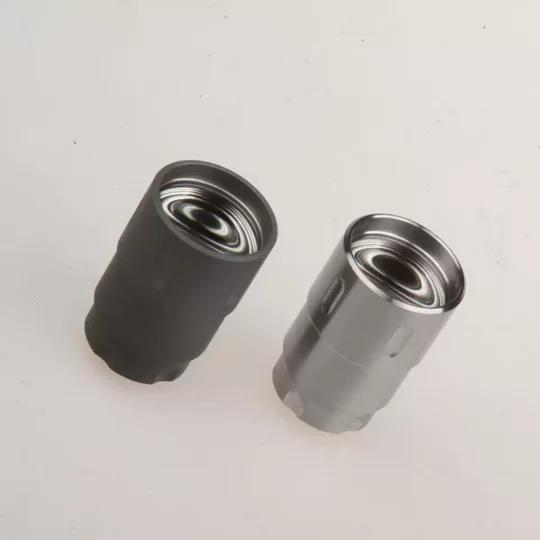

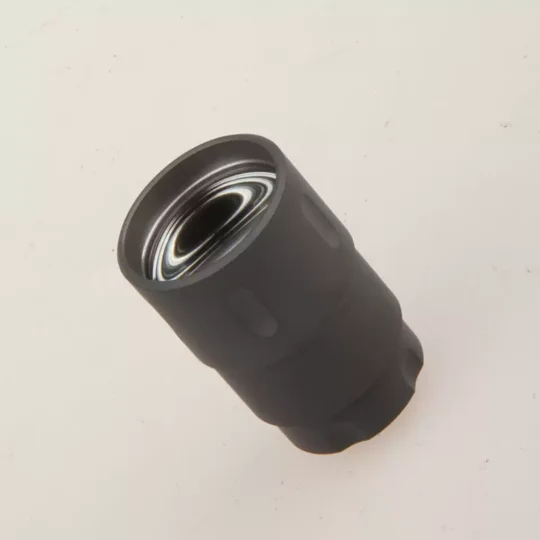

X3 Beam Expander

The X3 beam expander is explicitly made for our handheld lasers. It reduces beam divergence by three times and dramatically extends the visibility range of the laser beam. Constructed with a stable stainless-steel housing, our beam expander has an adjustable focus allowing you have fully control to the beam!

Our X3 beam expander also compatible with our 304 laser pointers.

Technical specs
Housing  Stainless Steel
Actual Expand Ratio  3.3
Adapter thread M11.4x0.5mm
Adapter parameters 3mm x 11.5mm
Aperture diamters 29.2mm


Buyer attention:

This item is not compatible with the Pocket series.

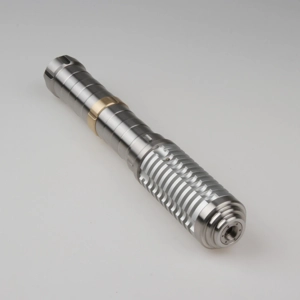

The Striker series requires the stainless-steel adapter to attach and use the x3 beam expander properly.




Reviews
write review
Excellent!
7/3/2018
The best for this price!
Ivan Kolev
Beam expander
4/24/2018
I highly recommend this beam expander I have used it on several lasers including the blue 1.5 Watt 3 Watt and 5 watt laser and green laser 1 watt. I have actually measured the the diode shape Beam at various distances and it is 1/2 size measured the long dimension another words it should double the energy over not having this beam expander the vertical Dimension is pretty much the same. The actual diode image at distance being a rectangular shape box typical of blue lasers diodes . Visibility should be comparably enhanced. The lenses only reduce the output by approximately 10% so the energy out of the laser is 90% with this being attached. These measurements being done with a laser power meter with and without the beam expander on it and at the same temperature and same battery charge.
Ron Loscalzo
Excellent Product!
8/1/2017
This is by no means a technical review, as I do not have the technical specifications for the optics. This is another excellent product from Sanwu, the Beam Expander gives you fine control of your laser over varying distances. I particularly recommend this product for use with 635nm high power lasers, as it goes a long way to effectively reduce the bar shaped beam profile of these diodes. For other wavelengths it gives great performance with increasing the visible range of your laser and reducing divergence over a distance. I highly recommend this bit of optics for your laser. 10/10!
Rob White
