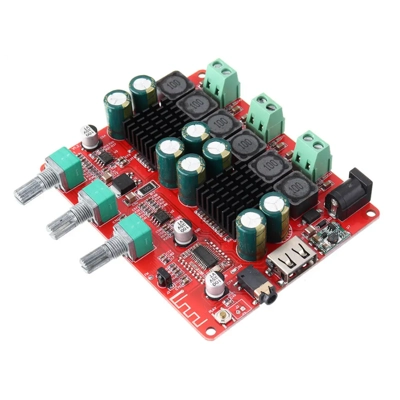

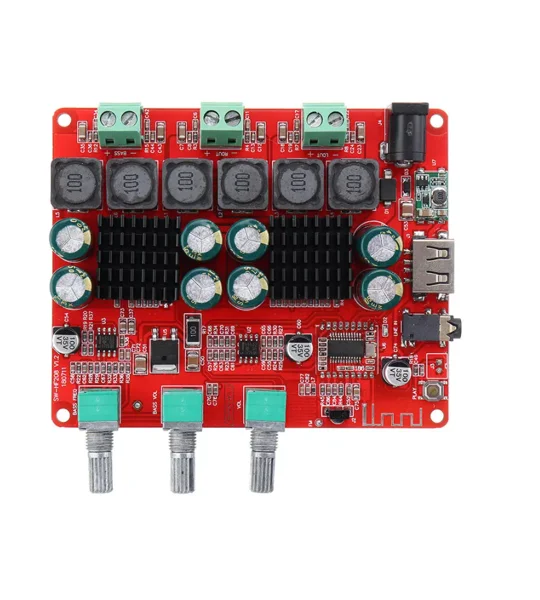

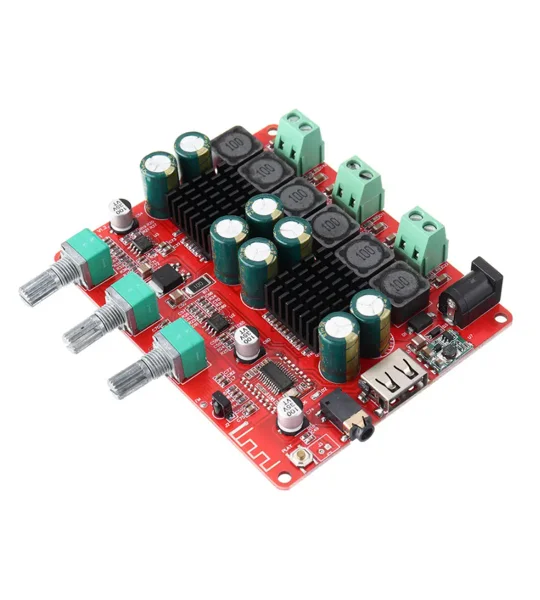

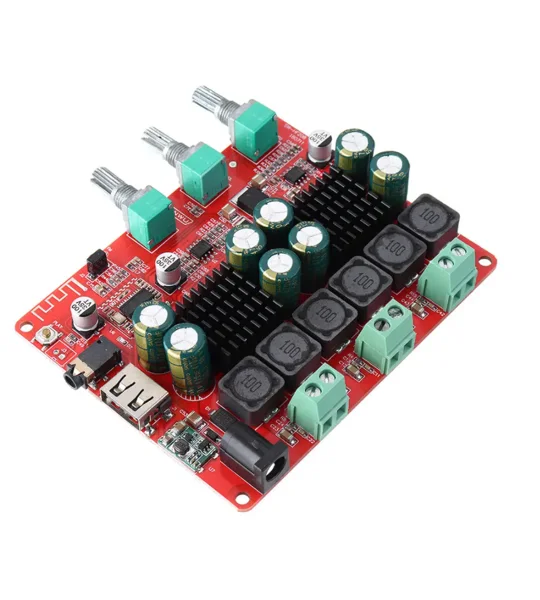

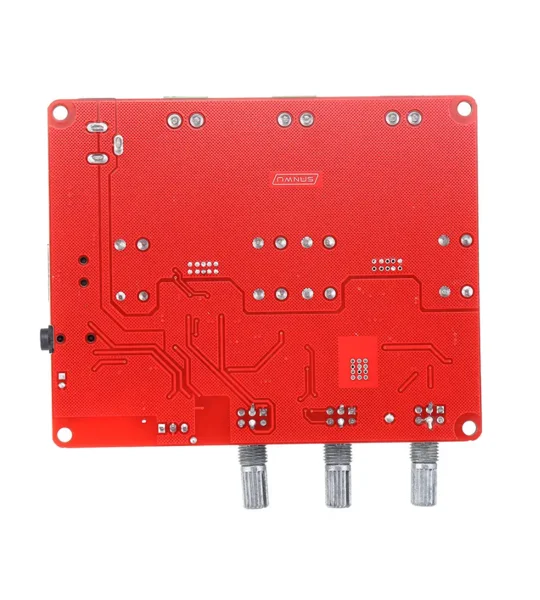

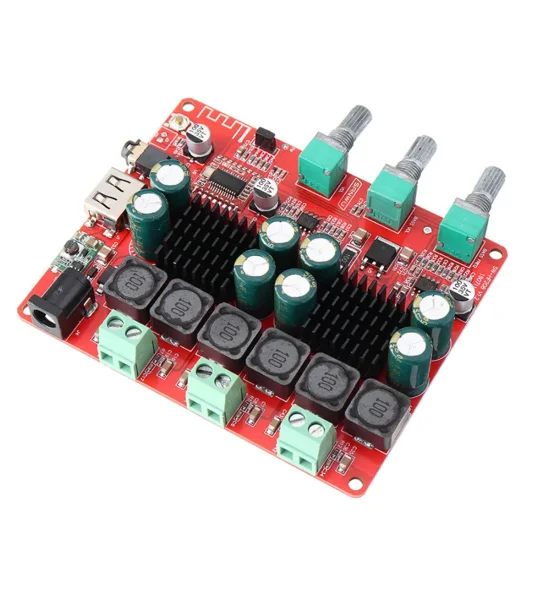

SANWU SW-HF208 BT 4.2 5.0 AMP Module 2.1 Channel Digital Audio Amplifier

Name: SANWU SW-HF208 BT 4.2 5.0 AMP Module 2.1 Channel Digital Audio Amplifier
Brand: Sanwu
SKU: SW-HF208
Price: 28.00 USD
Availability: InStock

inc. tax Tax based on California, United States.

In Stock SW-HF208

SANWU SW-HF208 DC 10-25V BT 4.2 5.0 AMP Module 2.1 Channel Digital Audio Amplifier Board Remote Control Support for MP3, WMA, WAV, FLAC Feature: Version model: SW-HF208 Supply voltage: 10 25VDC with anti-reverse protection Power supply interface: DC 2.1 Bluetooth version: Bluetooth V4.2 / V5.0 Default Bluetooth device name: Xpecial Audio (device name can be customized for bulk order) Audio input: Wireless Bluetooth reception, USB decoding, audio input (3.5mm headphone) stereo Support playback format: MP3, WMA, WAV, FLAC FM radio: Install external antenna, control via the remote control Pre-chip: NE5532 Amplifier chip: stereo channel TPA3116 (50W+50W) bass TPA3116 (BTL 100W) Output power: 50W+50W+100W (bass) Adjustment knob: left and right channel output volume, bass crossover point, bass output channel volume Board size: 97 78mm height about 22mm Fixed hole size: 91 72mm Weight: about 102 grams Recommended power supply: 24VDC 5A (Noises may happen if the current is insufficient on h...

Your price

Description

SANWU SW-HF208 DC 10-25V BT 4.2 5.0 AMP Module 2.1 Channel Digital Audio Amplifier Board Remote Control Support for MP3, WMA, WAV, FLAC

Feature:

Version model: SW-HF208

Supply voltage: 10~25VDC with anti-reverse protection

Power supply interface: DC 2.1

Bluetooth version: Bluetooth V4.2 / V5.0

Default Bluetooth device name: Xpecial Audio (device name can be customized for bulk order)

Audio input: Wireless Bluetooth reception, USB decoding, audio input (3.5mm headphone) stereo

Support playback format: MP3, WMA, WAV, FLAC

FM radio: Install external antenna, control via the remote control

Pre-chip: NE5532

Amplifier chip: stereo channel TPA3116 (50W+50W) bass TPA3116 (BTL 100W)

Output power: 50W+50W+100W (bass)

Adjustment knob: left and right channel output volume, bass crossover point, bass output channel volume

Board size: 97*78mm height about 22mm

Fixed hole size: 91*72mm

Weight: about 102 grams

Recommended power supply: 24VDC >5A
(Noises may happen if the current is insufficient on high volume).

It's possible to use 24V 3A as power supply on low power speakers.

Speaker impedance: 8 ohms is best, can also drive 4 ohms, 6 ohms, 8 ohms, etc.

Instructions: Blue light flashes when the device is powered on successfully (nearby paired devices will be paired automatically) and unpaired devices can search for bluetooth device for pairing.

When using the USB stick, LINE IN (3.5 headphone holder) is connected to the priority playback, and the audio input can be switched remotely.

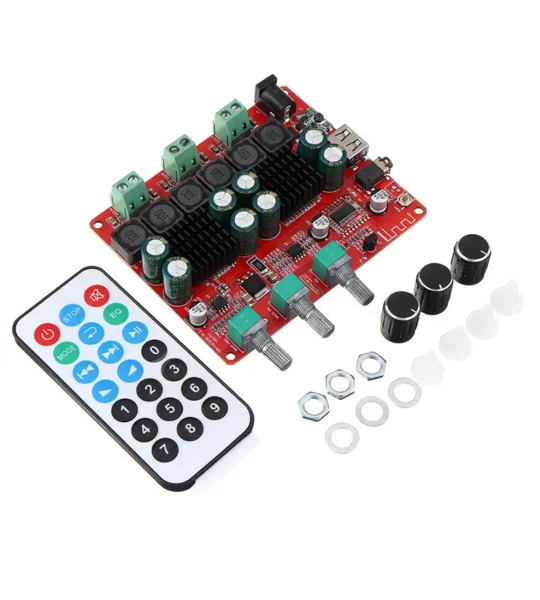

Package includes:

1 x Digital Receiver Amplifier Board
1 x Remote Control

We accept custom bluetooth sound & bluetooth name customization, board modification, OEM amplifier.

Please contact us via [email protected] for further assistance or to make an order.
