Different power and wavelength options available. Customizable acc driver to ensure the stability and performance of the laser. Capable to work under heavy duty, built with copper and large aluminum heatsinks, not to forget it's direct fan cooled.

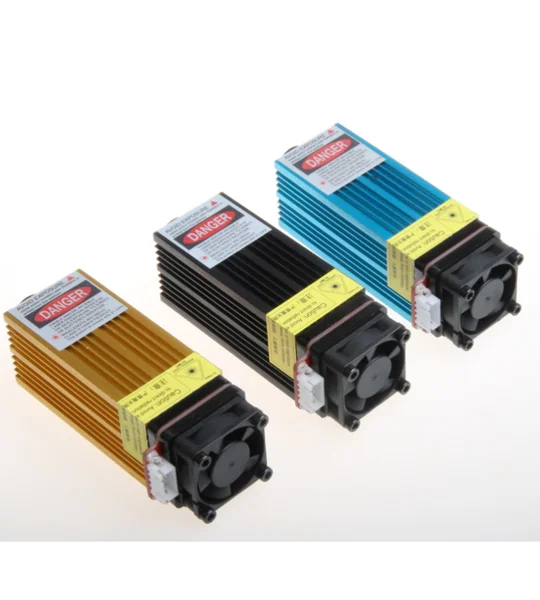

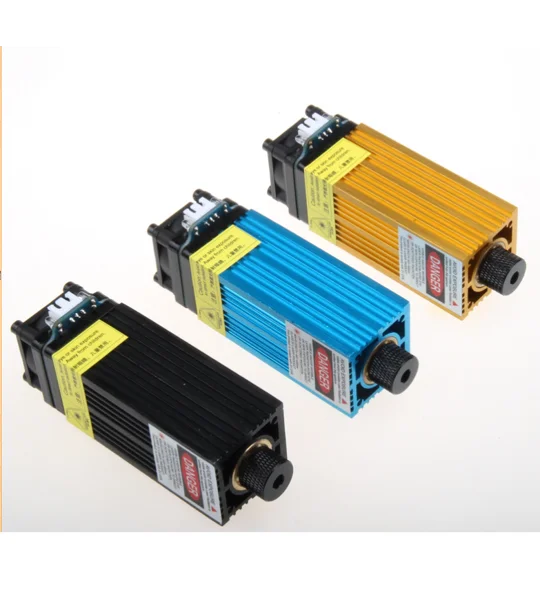

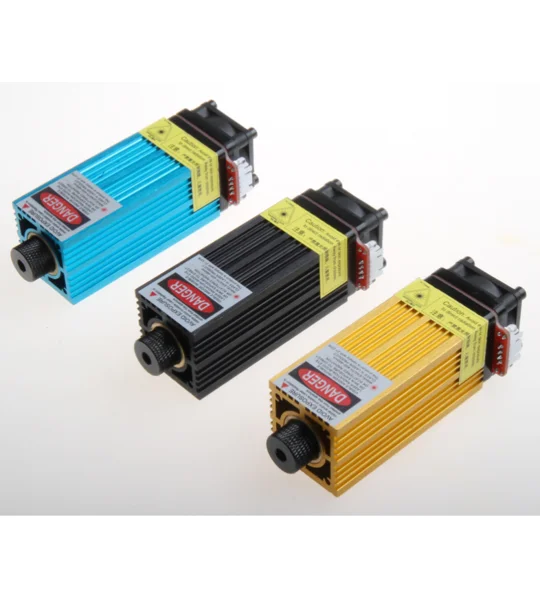

XTE20 - 300mW - 6000mW

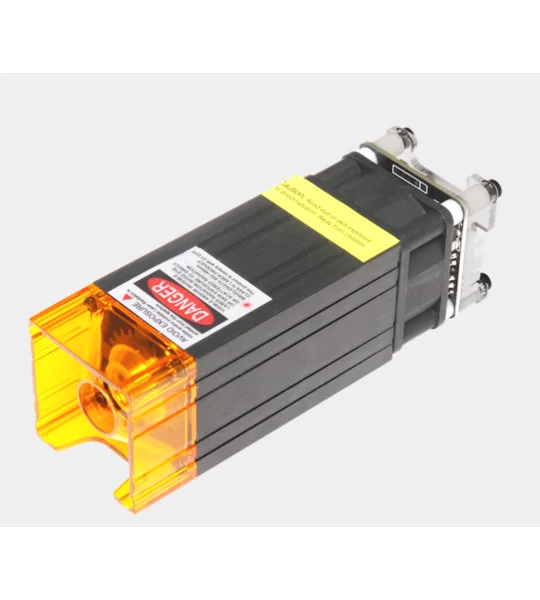

XTE20WD - 10W 445nnm
Product spec:
Output | 300mw ~ 10000mw |
Wavelengths | 405nm, 445nm, 520m, 525m, 638nm |
Voltage | 12 VDC(8~15 VDC) |

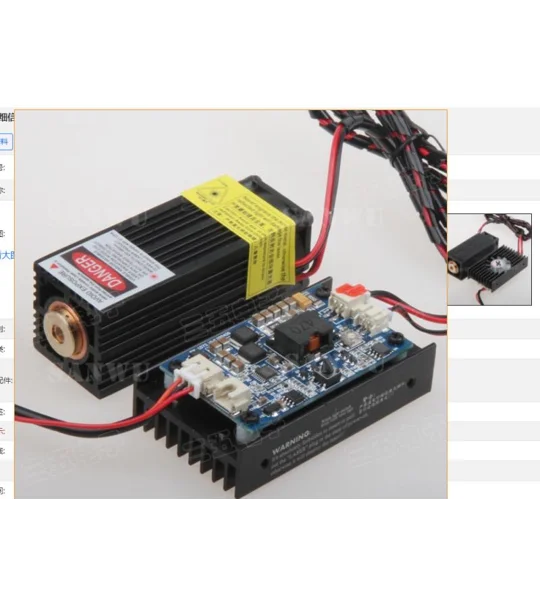

Current | 1~ 3A ACC driver |
Housing | Aluminium / Copper heatsink |
Color | Black Blue Yellow |
Cooling | Fan cooled |

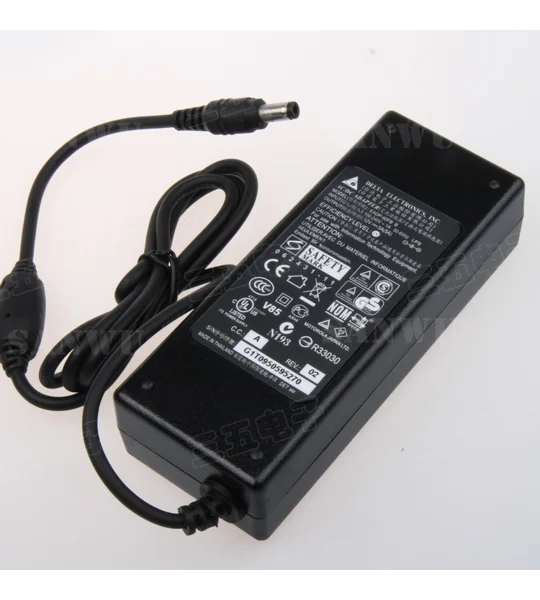

Power supply | 2.1 DC plug |
TTL / PWM (Control Interface):
Power supply: 12V
TTL signal input 0~5V, controls the switch
PWM controls the power of the module.
Corresponding ports:
Single port:
2.54-3p (TTL + PWM)
Two ports:
2.54-3p (power supply + PWM) + 2.54-3p interface (TTL)
2.54-3p (power supply + PWM) + 2.54-2p interface (TTL)
Three ports:
2.54-2p (power supply + PWM) + 2.54-2p interface (TTL) +
2.54-2p interface (The last port can be left unplug)
Features:
1. Aircraft aluminum heatsink with cooling fan to ensure continuous operation.
3. Equipped with constant-current driver achieve stable output and performance.
4. Suitable for industrial laser engraving.
5. Most modules are focus adjustable except the 10W 445nm laser module which comes with non adjustable focusing version only for pinpoint engraving use.
Materials that can be engraved:
Stainless steel, anodized aluminum, wood, bamboo, plastic, paper, leather, bank card, rubber.
Materials that cannot be engraved:
Iron, aluminum, stone, ceramic, shell, light-reflecting material, transparent materials.
Note:
1. Please wear laser goggles during operation and avoid any direct contacts to the laser beam.
Lower pricig for bulk order, please contact us directly for a quote. Power source, voltage and mounting plate of the laser modules are all customizable for bulk purchasing.
