SANWU TPA3116 2X50W Bluetooth 4.2 5.0 USB microSD Dual-CH Amplifier

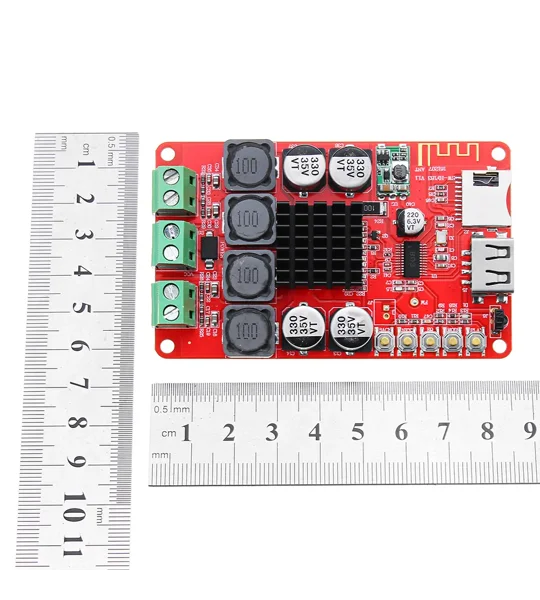

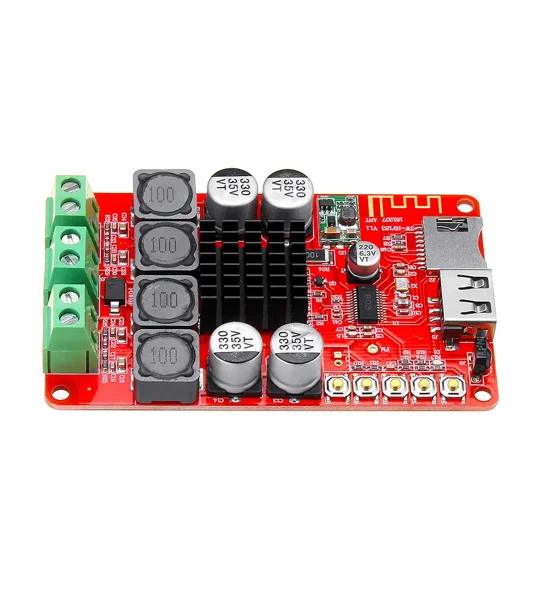

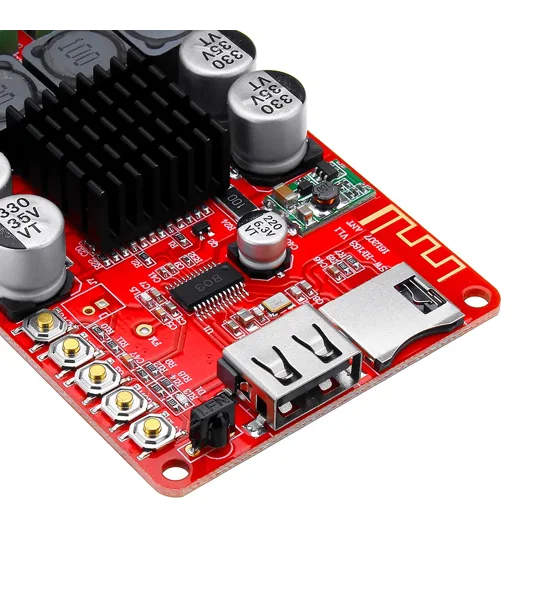

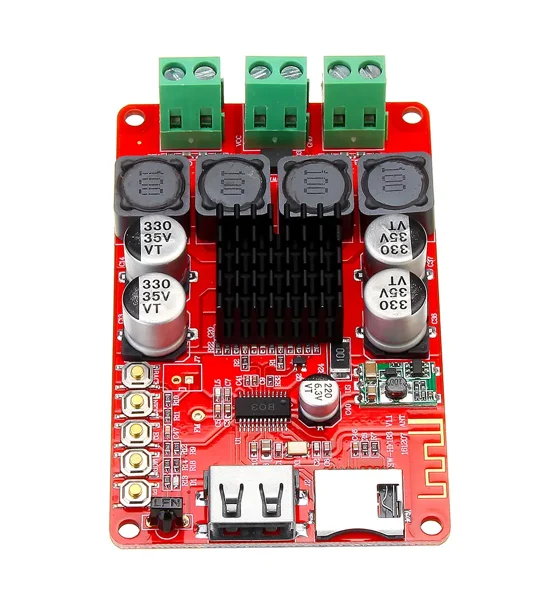

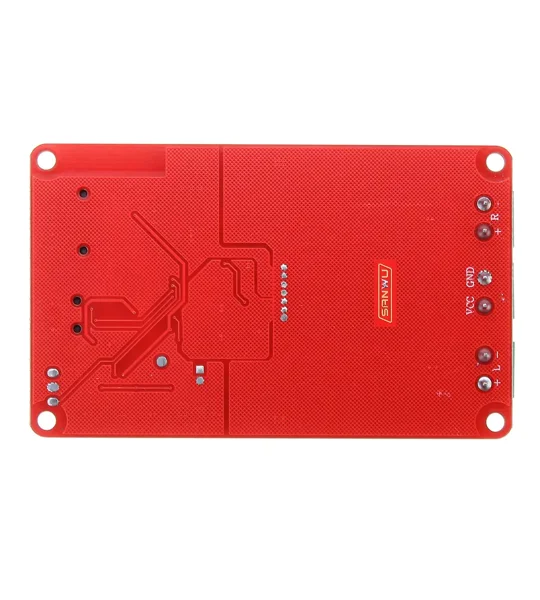

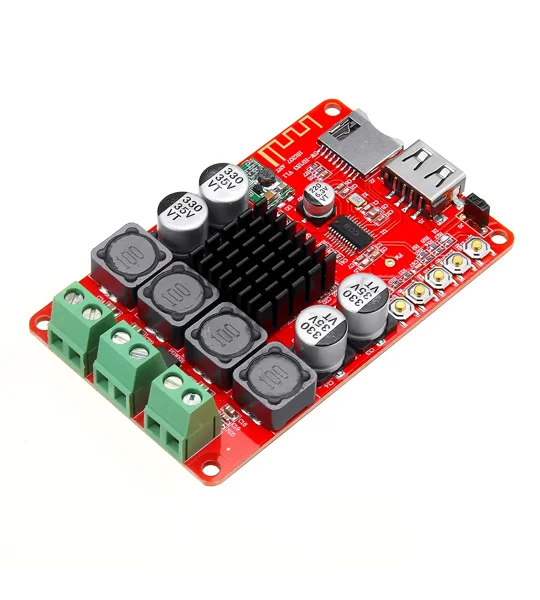

SANWU HF183 Bluetooth 4.2 / 5.0 TPA3116 2X50W Digital Wireless bluetooth Receiver Module Amplifier Board USB microSD Card Decoder Dual Channel With Remote Control

Specs:

Bluetooth: 2.1 / 4.2 / 5.0

Audio mode:
1. USB microSD card decoding playback (support FLAC, WAV , MP3, WMA format decode)

2. bluetooth receiving playback
Supply voltage: DC 8 - 26V (DC power supply)
Current: 5A

J7 function: This is a reserved hole for development and has no other functions.

Amplifier chip: digital amplifier chip TPA3116 with heat sink, stereo, power 2X50W.(More than 24V 3A switching power supply is recommended, it can’t use the transformer to power supply)
Additional features: FM radio function, it can use remote control to receive control (infrared)

Build FM: You need to use the FM FM radio function, please first solder a long wire to the FM antenna pad to serve as the antenna.

If the adio signal is not good install a longer antenna.

FM use: First switch to FM mode, then long press PLAY button, wait for the automatic channel search, and then release your hand. After the automatic channel search is completed, press the previous song to switch to the next one.

Package included:

1 x HF183 Digital bluetooth Amplifier Board
1 x Remote Control

We accept custom bluetooth sound & bluetooth name customization, board modification, OEM amplifier.

Please contact us via [email protected] for further assistance or to make an order.
